PROPERTIES and features

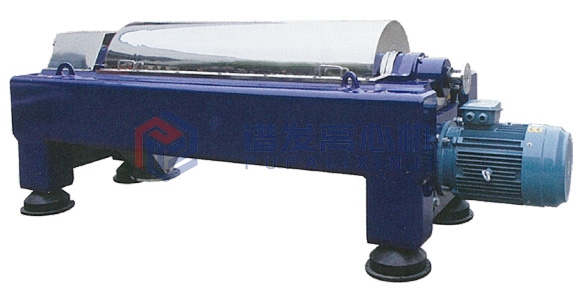

LW Sedimentation Centrifuge is a horizontal, continuously working and continuously spiral discharging sedimentation centrifuge. it is used in a variety of industries for separating all kinds of solid - liquid suspension, defecating liquid phase with graded grains, and dehydrating sludge such as: polyoxyethylene, sulfurous acid, tansuanbei, strontium sulfate, lidefen, titanium pigment, ore, porcelain, clay, kaoline, diatomite, amylum, soyaabean protein, earthnut protein, syrup, beverage, vegetable oil,citric acid, scavenge oil purification, cleansing water purification, lees, tallow, blood powder, sludge from power plants, sludge from printing and dyeing, sludge from paper making, sludge from desulfurizing natural gas calcium carbide sludge, activated sludge ammonia sludge, sludge from washing cars alum sludge, drilling mud, coal flotation waste, cryolite flotation liquid.

Operating principle

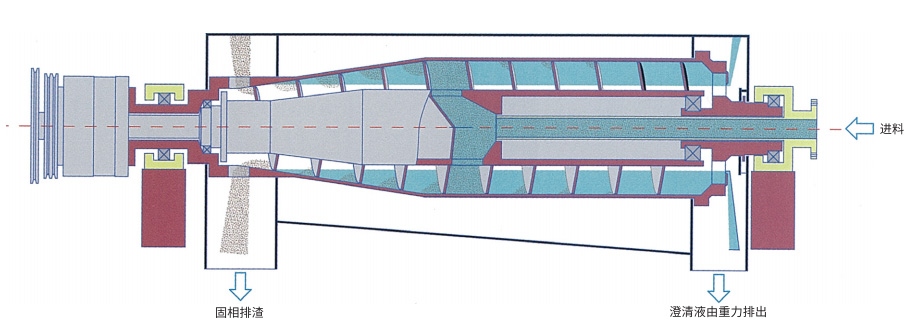

The machine starts and speeds up automatically. When the proper working condition are met and the revolving drum reaches the feeding speed, the feeding valve opens and allows suspension which will be separated to enter into the product compartment of the spiral feeder through the feeding pipe. After the preliminary speed-up, the suspension passes the outlet of compartment and into the drum. Because of centrifugal force, the suspension in the drum is quickly divided into two phases, the heavier solid phase deposits to the inner wall of the drum. and driven by the differential gear which results in the non-cynchronous movement between the spiral feeder and the drum. The solid phase will be transferred into the small end for further dehydration and finally discharged through solid phase outlet. The separated liquid flows out though the big end or will be driven out by centrifugal pump.

Main features and ALLOCATION

1.Continuous working,spiral discharging,high capacity.
2.Controlled by two motors,rovolving drum can be adjustable two-stage separately.
3.Wide applicability for chemical,oil,foodstuff, pharmacy industries and green industry in which solid-liquid separation is required.
4.Suitable for various products capable for separating wide-ranging solid phase grains(0.002-2mm),especially when separating solid phase has different size grains.

Material Choice:
According to users' requirement, the product contact parts can be made of austenite stainless steel (321 ,316L ....904L, C2205), Haynes alloy titanic alloy or other anti-erosion materials.

Material Choice:
1.Methods of lubrication : A.Grease lubrication B.Circular forced lubrication
2.Number of helical blade head is selectable within single head helix,double head helix or multiple head helix.
3.Helix surface is coated with high hardness alloy.

Fllowing alocatio can be pssible to meet Customer 's demand:
1.Frequency conversion plus PLC cntolling system.
2.Protection system for vibration and temperature rising
3.Feeding speed control.
4.Gas-liquid separation device on liquid outlet.
5.Three kinds of structure selection of cycloid gear, planetary gear and hyraulia differential. They are used to be transfered the different solid phase by pushing the torque.

LW Technical parameters

Items	Models
	LW-250*1000	LW-350*1460	LW-450*1800	LW-520*2130	LW-650*2275
Basket Dia(mm)	250	350	450	520	650
Basket Lenght(mm)	1000	1460	1800	2130	2275
Max speed(r/min)	4000	4000	3600	2800	2500
Max separating factor(N)	2238	3133	3265	2281	2273
Processing capability(m³/h)	0.5-3	3-12	6-20	12-30	25-35
Main motor power(KW)	11	22	30-45	45-75	75-110
Dimension(LxWxH)(mm)	2740*700*900	3950*830*1170	4385*1140*1508	4760*1250*1554	5120*1450*1750
Weight(kg)	1200	2250	3200	5600	7800
