Operating principle

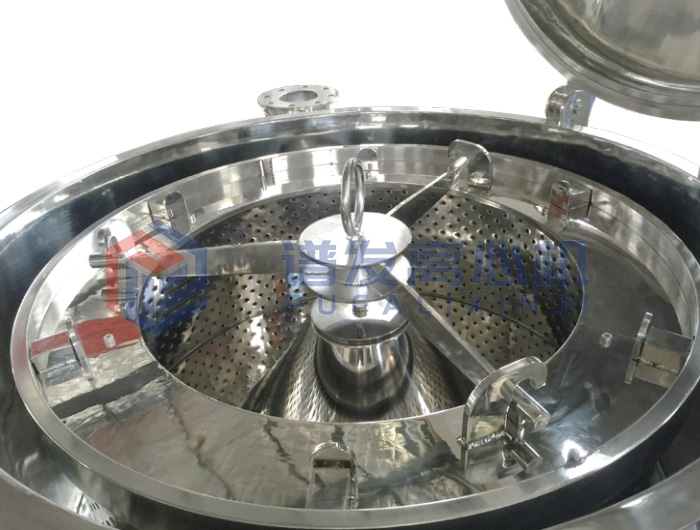

Once the materials to be separated enter the fast - spinning basket, it will be filtrated by the filter liner under the centrifugal force. The liquid flows out through the liquid outlet, but solids deposit on the internal wall of the basket.Once the solid cake reaches the rate capacity, feeding stops. Wash the solids cake, and then drain out the washing water. Finally stop the machine. Use the lifting tool or crane to lift out the filter cloth with solid cake, and move to the discharging place. Open the filter cloth and discharge the solid cake. Put the filter cloth back to the centrifuge and move to next batch.

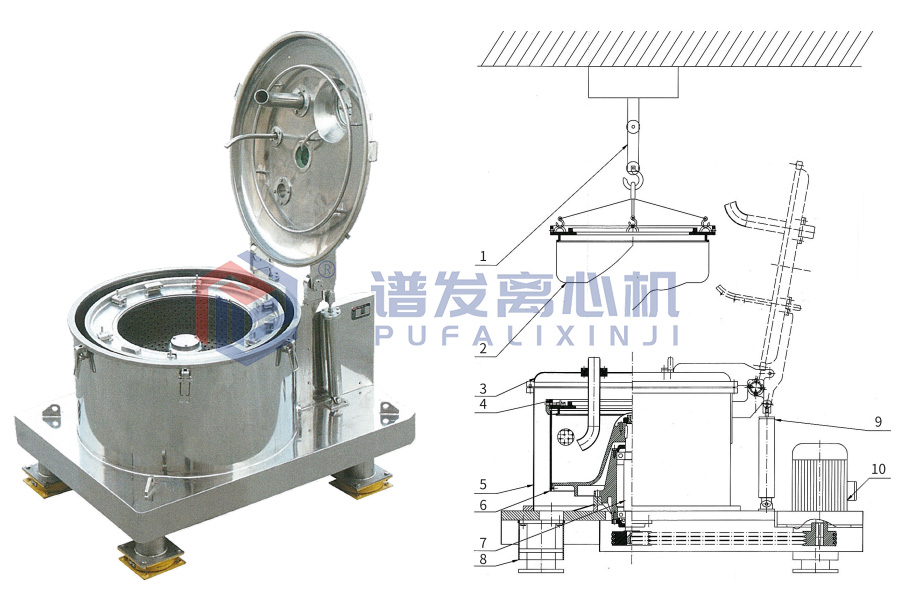

1/The lfting device
2/The lifting
3/The top coverbr
4/The hanger

5/The shell
6/The drum
7/Drive mechanism

8/The shock absorber
9/Open institutions
10/The motor

Main applications

Apply to separating material with granulate particle shape, but also fibers, like plasters, bluestone, potassium chloride, borax, dyestuffs, pesticides, salts, gourmet powders, foodstuff additives, chemical flavors, antibiotics, vitamins, the metals like copper, zinc and aluminum, metal products, sludge, etc.

Main features

1.Inverter start-up, smooth starting, adjustable relative centrifugal force.
2.Discharge cake by lifting out filter cloth is highly efficient with low labour intensity; No damage to the particles; Wide range of applications.
3.Well- designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
4.Overall weldling structure between the base and the case ensures high carrying strength.
5.Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
6.Liquid-damping vibration isolators, simplifty the routine maintenance.
7.Big hlinged cover, feed pipe, wash pipe, observation glass and light.
8.Automatic CIP system (optional) cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
9.Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti-explosion applied to poisonous, flammable and explosive environment.
10.Equipped with hydraulic suspension arms (optional), which is easy for discharging and complies with the sanitation requirements.

PSD Technical parameters

Items	Models
	PSD 800	PSD 1000	PSD 1250	PSD 1500	PSD 1600	PSD 1800
Basket Dia(mm)	800	1000	1250	1500	1600	1800
Basket Volume(L)	120	200	400	600	800	910
Max. load(kg)	150	250	500	800	1000	1100
Max.Rotating speed(r/min)	1200	1000	1000	850	850	780
Centrifuge force	645	680	700	607	647	612
Motor(kw)	5.5	7.5	18.5	30	37	37
Dimension(LxWxH)(mm)	1600*1200*1320	1800*1400*1500	2300*1800*1780	2800*2200*1800	3000*2200*2150	3300*2600*2150
Weight(kg)	1500	2000	3000	6000	9000	10000
