工作原理

1.Well-designed structure and polished surface leaves no residual heel. With big hinged cover, it is easy to clean the gap between the case and the basket.
2.Platform base design lowers the center of gravity and requires minimum installation space. The platform base can be used for operation platform.
3.Big hinged cover, feeding pipe, washing pipe, observation glass and light.
4.Automatic CIP system (optional) cleans the internal surface of the case, the basket and liquid slot to meet the clean requirement in accordance with GMP standards.
5.Wide range of applications. No damage to the particle shape.
6.Inverter start-up, smooth starting, adjustable relative centrifugal force.
7.Tightness structure with silicone rubber or fluoroelastomers seals. Nitrogen protection system (optional) is for anti- explosion applied to poisonous, flammable and explosive environment.

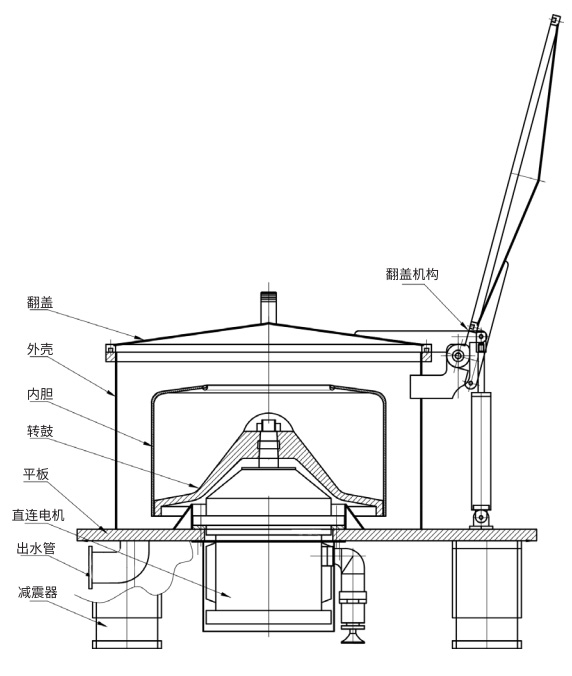

8.Model PSF centrifuge has applied direct shaft connected motor, which eliminates frictional dust from belt drive In the meantime, the motor is installed at the bottom of the machine, which requires minimum installation space.

PSB Technical parameters

Items	Models
	PSB 450	PSB 600	PSB 800	PSB 1000	PSB 1250	PSB 1500
Basket Dia(mm)	450	600	800	1000	1250	1500
Basket Volume(L)	20	45	100	200	400	600
Max. load(kg)	30	60	125	250	500	800
Max.Rotating speed(r/min)	1900	1500	1200	1000	960	850
Centrifuge force	910	755	645	680	700	607
Motor(kw)	2.2	3	5.5	7.5	18.5	22
Dimension(LxWxH)(mm)	1150*800*700	1300*900*800	1600*1200*900	1800*1400*1100	2300*1800*1780	2800*2200*1800
Weight(kg)	400	700	1300	1500	2500	6000

PSF Technical parameters

Items	Models
	PSF 300	PSF 450	PSF 600	PSF 800	PSF 1000	PSF 1250
Basket Dia(mm)	300	450	600	800	1000	1250
Basket Volume(L)	5	20	40	100	155	210
Max. load(kg)	7	30	55	135	200	260
Max.Rotating speed(r/min)	2825	1900	1500	1200	1000	960
Centrifuge force	1340	910	755	645	560	670
Motor(kw)	1.5	2.2	3	5.5	7.5	15
Dimension(LxWxH)(mm)	520*520*1000	900*800*1000	1000*900*1300	1300*1200*1400	1600*1500*1450	1800*1900*1600
Weight(kg)	200	300	650	1300	1600	2500
