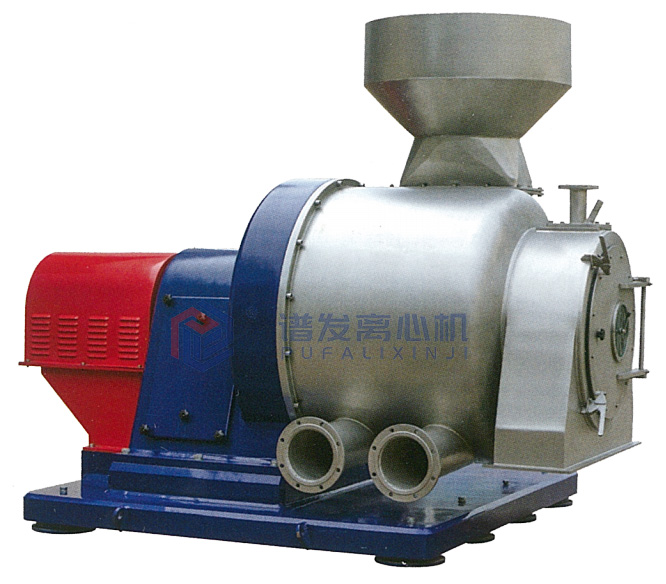

Product introduction

LSWG series centrifuge is a kind of solid-liquid separating equipment. The suspension will be fed, dehydrated, washed and discharged continuously under full speed. During the operation of the centrifuge, when power on, the centrifuge will start and accelerate automatically. When reaching the preset speed, the feeding valve will open, the suspension will enter into the decanter section of the centrifuge through the feeding pipe and the distributing cone at the middle section of the spiral. The suspension with low solid content will be pre-dehydrated and thickened So as to ensure the clarification in the decanter section.
Most of the liquid will be drained out through the adjustable overflow device at the backside of the centrifuge so as to get the clear liquid after centrifugation.
The solid material after pre-dehydration will be transported to the screen of the centrifuge for further dehydration. If necessary, washing can be operated.
According to the production requirements, the mother liquid and the washing liquid can be drained out separately or drained out together through the single hydrocyclone or double hydrocyclone.

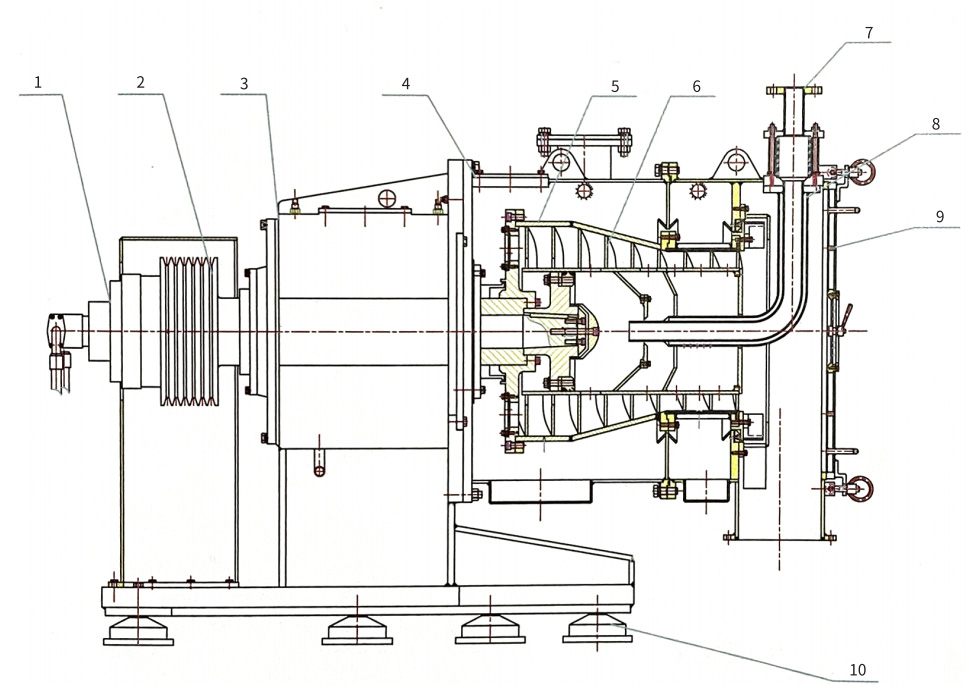

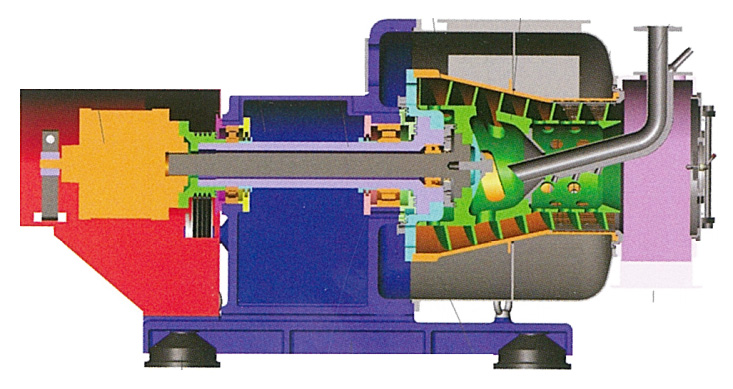

Structure Indication of LWD Series Centrifuge

1/hudraulic differential
2/main shaft
3/bearing seat group
4/outer shellgroup
5/drum group
6/spiralwheel group
7/feeding pipe group
8/washing pipe group
9/machine lid group
10/shock absorber

application

1.Crystal, grain or fiber is easy to subside.
2.Size of the grain should be larger than 0. 05mm.
3.The concentration of the solid material enters into the
4.centrifuge should be between 0 and 60Wt% (Wt%:percentage of the weight)
Advantages:
1.The basket has long service life.
2.High productivity. (Less solid loss)
3.High dryness of the product.
The advantage of the cantilever design:
1.Easy to replace the screen without disassembling the spiral.
2.Simple design of the sealing device.

LSWG Technical parameter

Models	Basket Dia(mm)	Bowl speed(r/min)	G-force	Productivity(m³/h)	Main Motor Power(kw)	Weight(kg)	Dimension(L*W*H)(mm)
LSWG 450	450	2500	1574	2~6	30	2500	1780*1440*1240
LSWG 650	650	1600	931	3~8	55	4000	2640*1700*1600
LSWG 900	900	1200	725	5~15	75	5000	2900*2220*1970
