Main features and configurations

1.PLC control for long- distance monitoring; touch-screen operation and human-machine dialogue for easy maintenance and operation.
2.Action elements with automatic electric- pneumatic/hydraulic control.
3.Safety protection: includes rotation speed monitoring, over-vibration protection, cover opening protection, motor overload and overheat protection, dual control with both mechanical and electrical for scraper.

4.Welded machine case, strong and rationally design structure.
5.All seals are made of the fluorous rubber and silicon rubber.
6.Independent hydraulic station can be installed separately, convenient to repair.
7.Driving with hydraulic coupling (GK1250 and bigger) for stable start-up and simple control, effectively protecting the motor from overload-related damage. Optional inverter start-up for variable speed control.
8.Floating platform with rubber vibration- absorbing foundation; Liquid -damping vibration absorber is also available with excellent effects of absorbing effects, ensures stable operation of the centrifuge and reducing hazards imposed to the equipment and environment from the centrifuge vibration.
9.Two discharging modes available: chute discharging featuring simple construction; and discharging through scroll conveyor and scraper featuring high catching rate of solid cake and effectively prevent blocking.
10.GKH Peeler centrifuge offering siphon pushing force which makes filtration faster. Back washing device is available for washing and regeneration of filtration medium. Skimming device is also available to suit for separation of colloid materials containing protein.

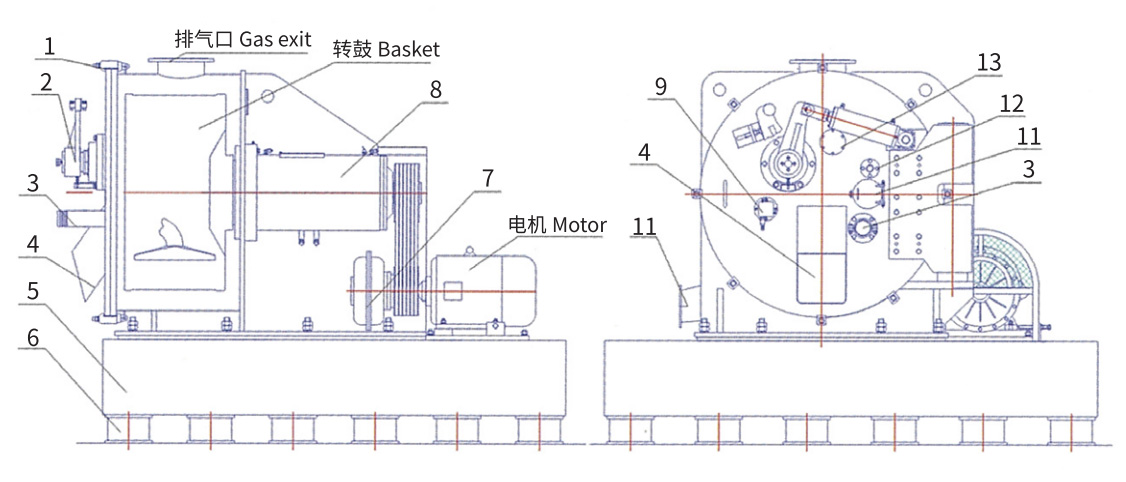

1/Locking device
2/Scraper device
3/Feeding pipe
4/Solid outlet
5/Vibration isolator block

6/Shock absorber cushion
7/Hydraulic coupling
8/Bearing seat
9/Cake layer controller
10/Drain pipe

11/Check hole
12/Washing pipe
13/Spare opening

GK Technical parameters

Items	Models
	GK 800	GK 1000	GK 1250	GK 1600
Basket Dia(mm)	800	1000	1250	1600
Basket Lenght(mm)	450	500	625	800
Basket Volume(L)	100	165	340	700
Max. load(kg)	135	225	450	950
Max.Rotating speed(r/min)	1550	1350	1200	950
Centrifuge force	1080	1020	1008	808
Motor(kw)	30	37	55	90
Dimension(LxWxH)(mm)	2500*1850*1300	2800*2000*1550	3450*2500*1850	4000*2600*2300
Weight(kg)	3500	6000	8000	15000
